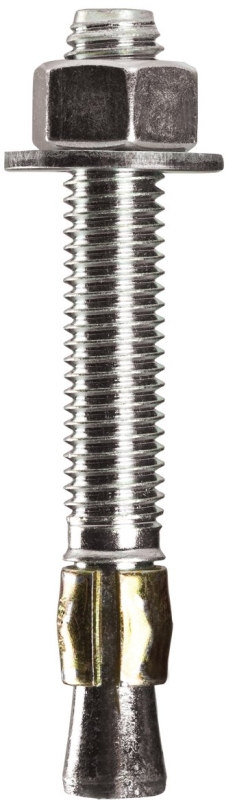

COBRA ANCHORS 501N Wedge Anchor, 1/2 in Dia, 3-3/4 in L, 1248 lb, Steel, Plated

Be the first to review this product

A taper shaped mandrel neck for a smoother expansion
A 360 deg parabolic clip for more contact thus stronger
A 360 deg parabolic clip for more contact thus stronger
Can be installed into bottomless hole
Cold formed for increased strength

SKU: C106-01706

Brand part number: 501N

Availability:

IN STOCK NOW : 71

Ships in 2-3 DAYS : 0

Call For Price

Overview
Specifications
Reviews
Contact Us

The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic shaped taper mandrel neck at the opposite end for a smoother expansion. It has a 360 deg clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.

Products specifications

Diameter	1/2 in
Drill Size	1/2 in
Finish	Plated
Length	3-3/4 in
Material	Steel
Minimum Embedment Depth	2-1/2 in
Shear Strength	6232 lb
Tensile Strength	6836 lb
Thread Length	2-1/4 in
Weight Capacity	1248 lb
Brand	COBRA ANCHORS
Manufacturer	COBRA ANCHORS
