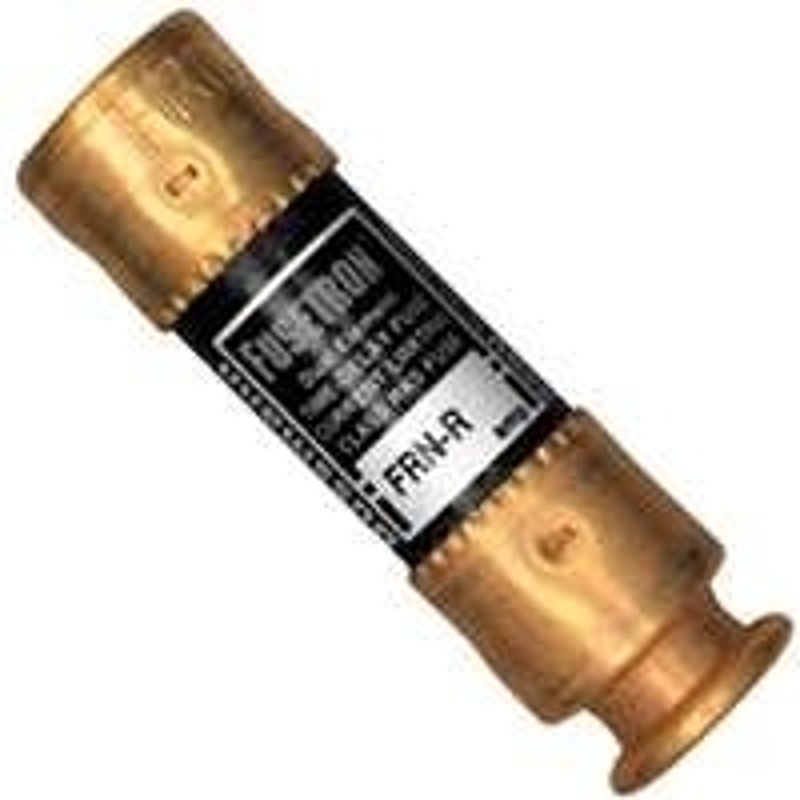

Provides motor overload, ground fault and short-circuit protection. Helps protect motors against burnout from overloads and single phasing on three phase systems. Will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of ten seconds. 250 V maximum. UL listed, CSA Certified.
Products specifications
|
Body Material
|
Fiberglass |
|
Current Rating
|
15 A |
|
Diameter
|
9/16 in |
|
Element Type
|
Dual |
|
Fuse Type
|
Low Voltage Time Delay |
|
Indicator Type
|
Non-Indicating |
|
Interrupt Rating
|
20 200 kA |
|
Length
|
2 in |
|
Rejection/Non-Rejection
|
Rejection |
|
Terminal Type
|
Holder |
|
Voltage Rating
|
250 VAC 125 VDC |
|
Manufacturer
|
BULLMAN |
