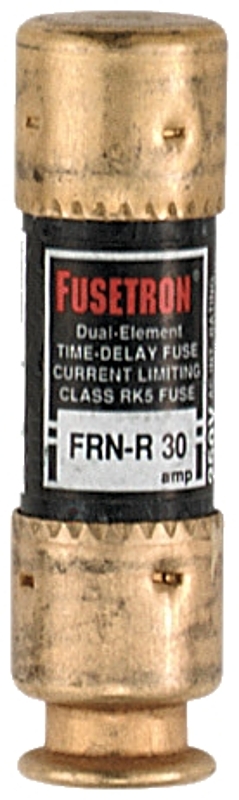

Bussmann FRN-R-30 Fuse, 30 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body, H

Be the first to review this product

Bussmann Series fusetron cartridge fuses are 23% more energy efficient and offer the best time-delay performance
Their dual element feature allows closer sizing to load for great protection of motors and transformers
Their dual element feature allows closer sizing to load for great protection of motors and transformers
When sized correctly, they help protect motors from burnout caused by overloads or single-phasing
The time-delay feature allows the initial startup current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present

SKU: B087-10176

Brand part number: FRN-R-30

Availability:

IN STOCK NOW : 0

Ships in 2-3 DAYS : 1150

Price: Call For Price

Overview
Specifications
Reviews
Contact Us

For combination starters, motor control centers, machinery disconnects, power panelboards

Products specifications

Body Material	Fiberglass
Current Rating	30 A
Diameter	9/16 in
Element Type	Dual
Fuse Group	H
Fuse Type	Low Voltage Time Delay
Indicator Type	Non-Indicating
Interrupt Rating	20 200 kA
Length	2 in
Rejection/Non-Rejection	Rejection
Terminal Type	Holder
Voltage Rating	250 VAC 125 VDC
Manufacturer	BULLMAN
