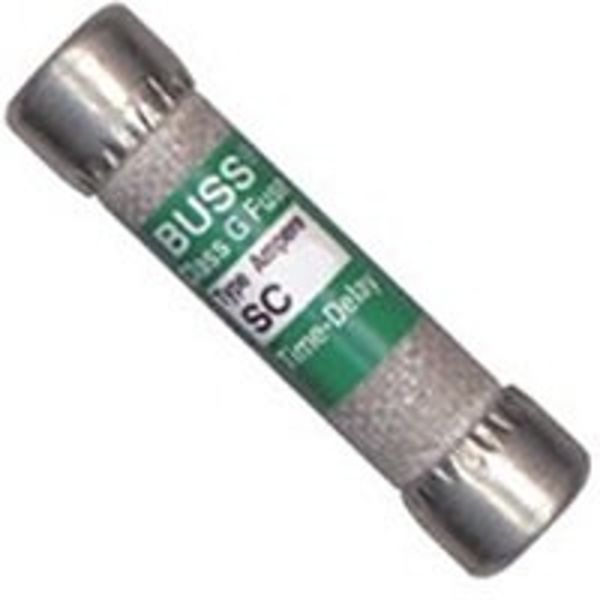

They have a minimum 300 V rating and are available up to 60 A. All SC fuses are 13/32 in Dia with varying lengths to provide a rejection feature that helps prevent over fusing (installing a 30 A fuse in a 20 A circuit). One half to 6 A SC fuses are fast-acting, while 7 to 60 A SC fuses are time-delay to permit temporary overloads to pass without nuisance openings.
Products specifications
|
Body Material
|
Melamine |
|
Current Rating
|
30 A |
|
Diameter
|
13/32 in |
|
Element Type
|
Dual |
|
Fuse Group
|
AJ |
|
Fuse Type
|
Low Voltage Time Delay |
|
Indicator Type
|
Non-Indicating |
|
Interrupt Rating
|
100 kA |
|
Length
|
1-5/8 in |
|
Rejection/Non-Rejection
|
Rejection |
|
Terminal Type
|
Holder |
|
Voltage Rating
|
480 VAC 300 VDC |
|
Manufacturer
|
BULLMAN |
