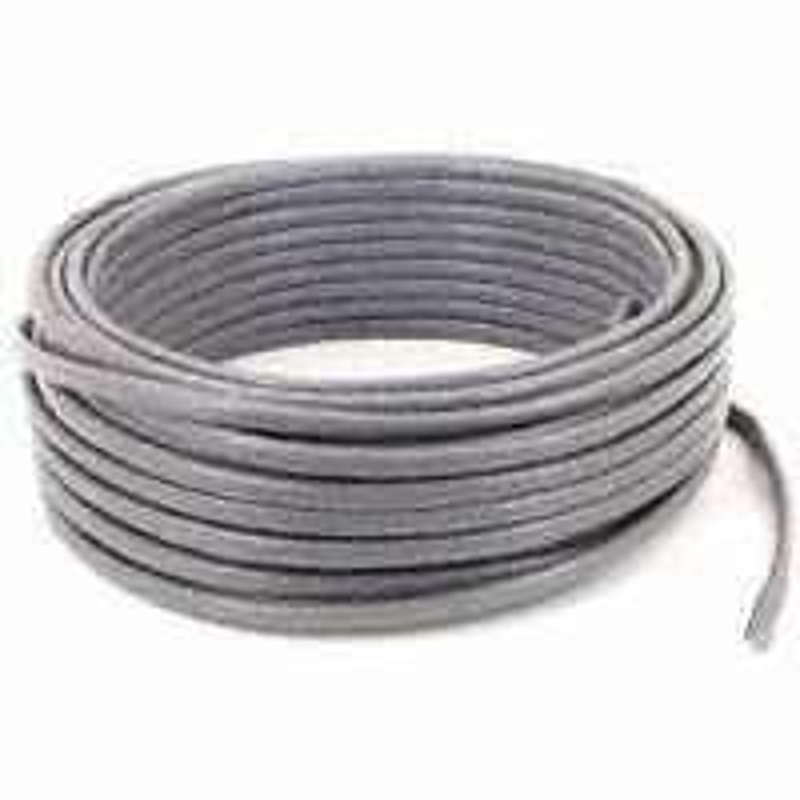

Above ground service entrance and branch circuit. Maximum operating temperature of phase conductors not to exceed 90 degrees Celsius for dry locations or 75 degrees Celsius for wet locations, 600 volt. Color coded phase conductors. Full or reduced neutral constructions. Fiberglass reinforced tape under the outer jacket. Sunlight and moisture resistant, flame retardant jacket. UL Listed. Amp capacities listed are at 30 degrees Celsius/85 degrees Fahrenheit.
Products specifications
|
Series
|
SEU |
|
Conductor Size
|
6-6-6 AWG |
|
Number of Conductors
|
3 |
|
Conductor Material
|
Copper |
|
Length
|
150 ft |
|
Strands
|
7/12 |
|
Amperage Rating
|
75 A |
|
Voltage Rating
|
600 V |
|
Insulation Type
|
XHHW, THHN/THWN |
|
Jacket Type
|
PVC |
|
Jacket Color
|
Gray |
|
Temperature Rating
|
90 deg C |
|
Standards
|
UL 44 and 83 and 854 Listed |
|
Usage
|
For Conveying Power from the Service Drop to the Meter Base and from the Meter Base to the Distribution Panelboard |
|
Manufacturer
|
SOUTHWORTH |
