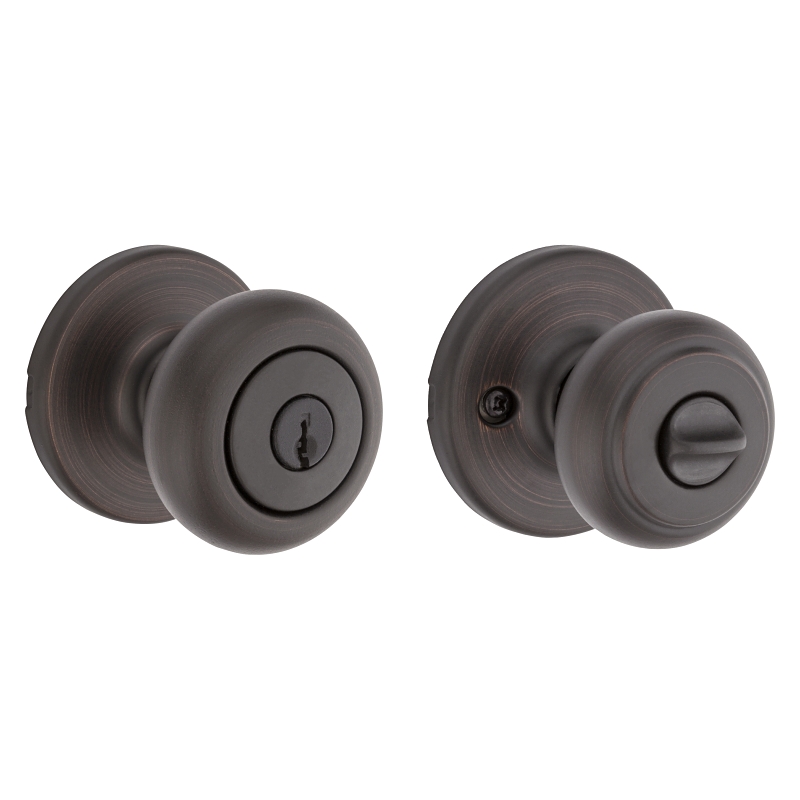

For keyed exterior doors. Both Colonial style knobs lock or unlock by key outside or turnbutton inside. DOOR PREP: 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: 2-3/8" standard and adjustable 2-3/8" and 2-3/4" optional. DOOR THICKNESS: 1-3/8" to 1-3/4"; 2-1/4" doors optional. CYLINDER: 5-pin. FACEPLATES: 1" x 2-1/4" round corner. STRIKES: 2-1/4" full lip round corner. BOLT: 1/2" throw. HANDING: Reversible for right or left hand doors. ANSI/BHMA: Grade 3.
Products specifications
|
Backset Size
|
2-3/8 in |
|
Bolt Throw Size
|
1/2 in |
|
Cross Bore Diameter
|
2-1/8 in |
|
Dimensions
|
2-5/8 in L x 2-1/2 in W x 2-3/16 in D |
|
Door Thickness
|
1-3/8 to 1-3/4 in |
|
Edge Bore Diameter
|
1 in |
|
Faceplate Size
|
1 x 2-1/4 in |
|
Finish
|
Venetian Bronze |
|
Includes
|
(2) Keys |
|
Key Type
|
Keyed |
|
Keyway Type
|
KW1 |
|
Material
|
Metal |
|
Security Grade
|
3 |
|
Strike Size
|
2-1/4 in |
|
Strike Type
|
Full Lip Round Corner |
|
Suitable for
|
1-3/8 to 1-3/4 in Thick Doors |
|
Manufacturer
|
KWIKSET |
