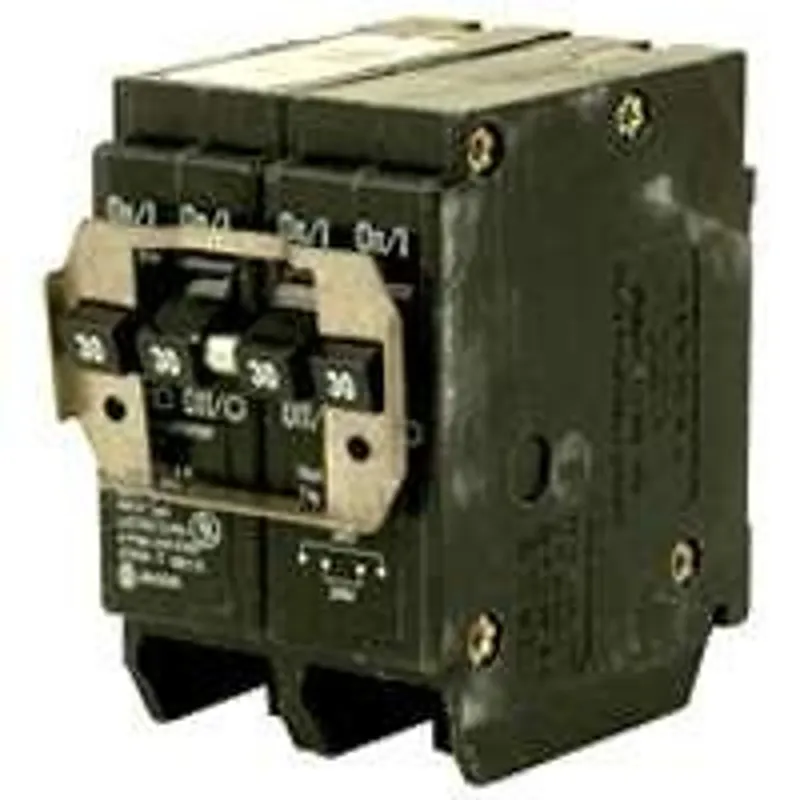

CTL Quadplex breaker with rejection tab, 2-pole outer independent trip and 2-pole center independent trip. Requires two 1 in spaces, Wire size range #14-4, 120/240 VAC.9 lb weight, 3 in x 2 in x 3 in. UL listed, Meets UL 489. Listing for HACR applications. Meets Federal Spec classification W-C375. 120/240 V, 10,000 AIC interrupting capacity,.
Products specifications
Actuator Type
|
Magnetic Thermal |
Current Rating
|
20/30 A |
Dimensions
|
3.1 in L x 0.78 in W x 2.89 in H |
Interrupt Rating
|
10 kA |
Mounting Type
|
Plug |
Number of Phases
|
1 |
Number of Poles
|
4 |
Number Of Spaces
|
2 |
Operating Frequency
|
50/60 Hz |
Operating Temperature
|
60 to 75 deg C |
Suitable for
|
BR Series Load Centers |
Terminal Type
|
Feed-Thru |
Type
|
Quad Type BQ |
Voltage Rating
|
120/240 V |
Wire Size
|
14 to 4 AWG |
Brand
|
Cutler-Hammer |
Manufacturer
|
CUTLER-HAMMER |
