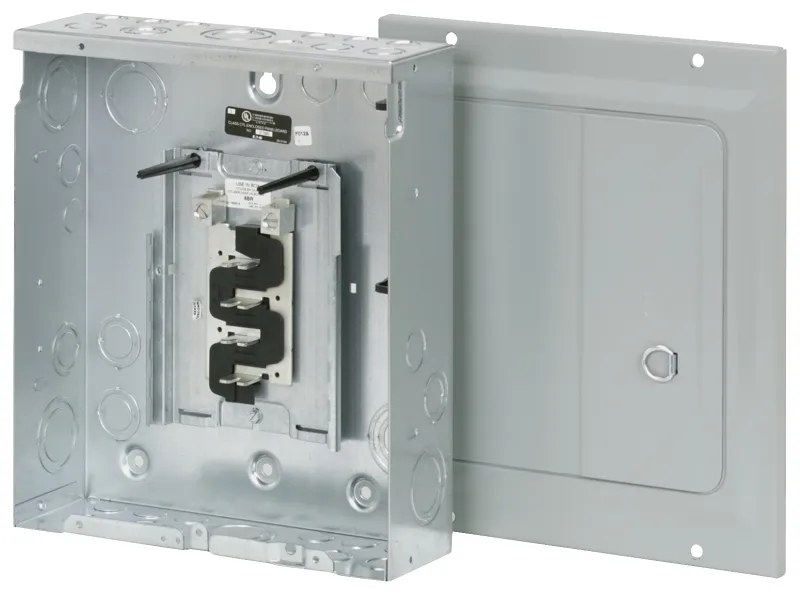

Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
Products specifications
|
Breaker/Load Center Type
|
Main Lug |
|
Bus Bar Material
|
Aluminum |
|
Cable Size
|
14 to 1 AWG |
|
Color
|
Light Gray |
|
Current Rating
|
125 A |
|
Enclosure Type
|
NEMA 1 |
|
Interrupt Rating
|
10 kA |
|
Mounting Type
|
Surface |
|
Number of Circuits
|
16 |
|
Number of Phases
|
1 |
|
Number Of Spaces
|
8 |
|
Voltage Rating
|
120/240 V |
|
Wiring Configuration
|
3-Wire |
|
Brand
|
Cutler-Hammer |
|
Manufacturer
|
CUTLER-HAMMER |
