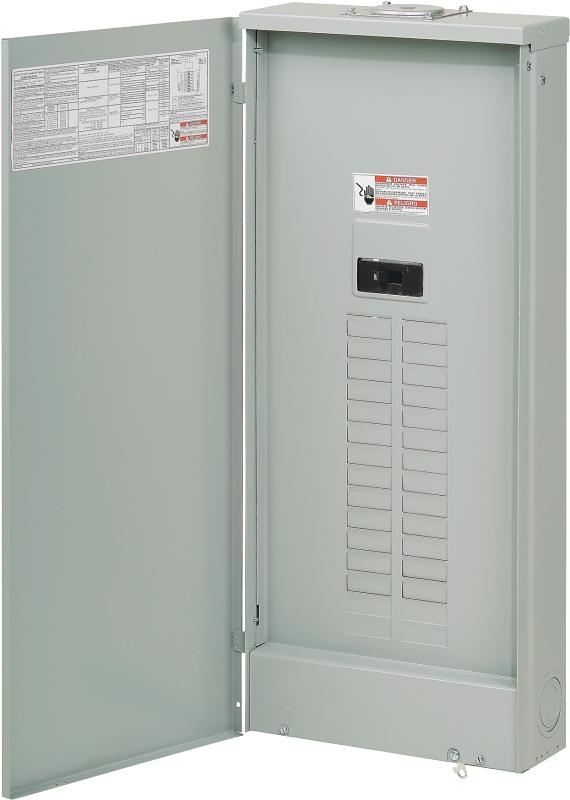

Rainproof galvanized steel enclosure. Single phase, 3-wire, insulated/bonded neutral, 30 (1 in) spaces, 40 poles, 120/240 VAC. Main breaker type BW at 25,000 AIC. Furnished with hub closure plates, hubs and ground bar kit (necessary for sub-feeding) sold separately. Tin-plated aluminum bus bar. Twin neutral with non-removable cross bus connecting them. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #2 - 300 kcmil wire range. Electrostatic powder coat, baked urethane painted. Rotate 180 deg for bottom feed; orientation of main breaker handle consistent with NEC 240-81 requirements because it operates horizontally. 14-5/16 in x 34-1/8 in x 5-3/16 in. UL listed file E52977.
Products specifications
Breaker/Load Center Type
|
Plug-On Neutral |
Bus Bar Material
|
Aluminum |
Bus Bar Rating
|
200 A |
Buss Bar Material
|
Aluminum |
Cable Size
|
2/0 AWG |
Current Rating
|
200 A |
Enclosure Type
|
NEMA 3R |
Includes
|
Cover |
Interrupt Rating
|
10 kA |
Mounting Type
|
Flush Surface |
Number of Circuits
|
60 |
Number of Phases
|
1 |
Number of Poles
|
40 |
Number Of Spaces
|
30 |
Temperature Rating
|
60/75 deg C |
Voltage Rating
|
120/240 V |
Brand
|
Cutler-Hammer |
Manufacturer
|
CUTLER-HAMMER |
