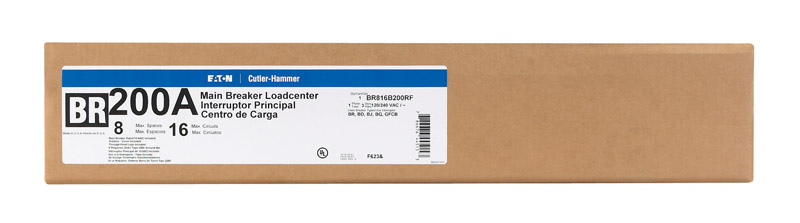

Rainproof galvanized steel enclosure. Single phase, 3-wire, insulated/bondable neutral, 8 (1 in) spaces, 16 circuits, 120/240 VAC. Main breaker type BWH at 25,000 AIC. Includes feed thru lugs for both phase and neutral conductors. With hub closure plates, hubs and ground bar kit (necessary for sub-feeding) sold separately. Tin-plated aluminum bus bar. Neutral is movable to other side. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #2 - 300 kcmil wire range. Electrostatic powder coat, baked urethane painted. Rotate 180 deg for bottom feed; orientation of main breaker handle consistent with NEC 240-81 requirements because it operates horizontally. 14-5/16 in x 25 in x 5-3/16 in. UL listed file E8741.
Products specifications
|
Breaker/Load Center Type
|
Plug-On Neutral |
|
Bus Bar Material
|
Aluminum |
|
Bus Bar Rating
|
200 A |
|
Buss Bar Material
|
Aluminum |
|
Cable Size
|
2/0 AWG |
|
Current Rating
|
200 A |
|
Enclosure Type
|
NEMA 3R |
|
Includes
|
Cover |
|
Interrupt Rating
|
25 kA |
|
Mounting Type
|
Flush Surface |
|
Number of Circuits
|
24 |
|
Number of Phases
|
1 |
|
Number of Poles
|
16 |
|
Number Of Spaces
|
8 |
|
Temperature Rating
|
60/75 deg C |
|
Voltage Rating
|
120/240 V |
|
Brand
|
Cutler-Hammer |
|
Manufacturer
|
CUTLER-HAMMER |
