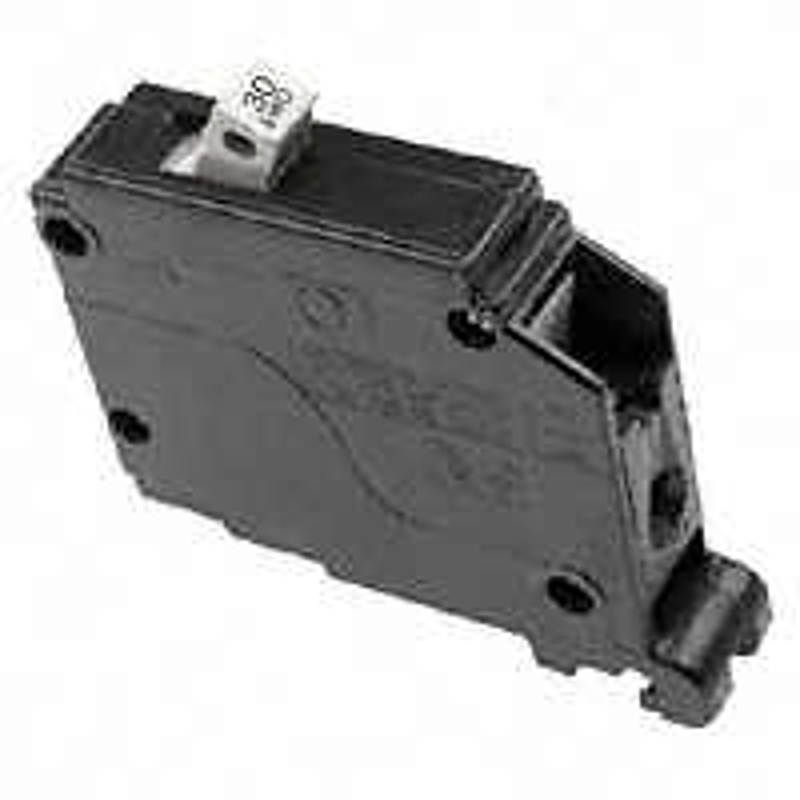

Eaton has enhanced its premium Type CH residential circuit breakers, making the ideal even better. In addition to the industry exclusive "Trip to OFF" and simple 1-step reset feature, Eaton has added a trip flag to visibly indicate breaker status. Along with Tri-Drive screws and new markings that highlight ratings and the Eaton brand. These additional features truly make this product a enhanced offering for residential, light commercial and OEM applications.
Products specifications
|
Actuator Type
|
Magnetic Thermal |
|
Current Rating
|
30 A |
|
Dimensions
|
3-1/2 in L x 1-1/2 in W x 3-1/2 in H |
|
Interrupt Rating
|
10 kA |
|
Mounting Type
|
Plug-In |
|
Number of Phases
|
1 |
|
Number of Poles
|
1 |
|
Number Of Spaces
|
1 |
|
Operating Frequency
|
50/60 Hz |
|
Operating Temperature
|
60 to 75 deg C |
|
Suitable for
|
Type CH Load Centers |
|
Trip Type
|
Instantaneous |
|
Type
|
Miniature Type CH |
|
Voltage Rating
|
120/240 V |
|
Wire Size
|
14 to 10 14 to 8 AWG |
|
Brand
|
Cutler-Hammer |
|
Manufacturer
|
CUTLER-HAMMER |
