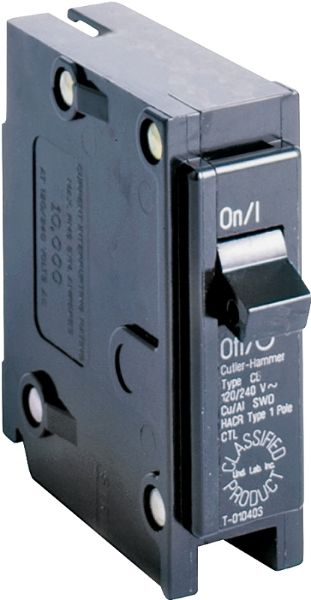

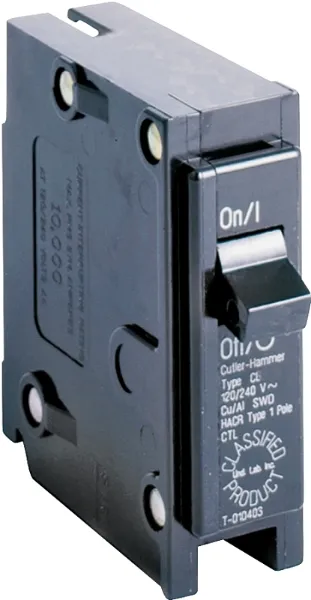

Wire size range #14 to 4. Type CL replacement breakers, classified as direct replacements by Underwriters Laboratories for Square D Homeline, General Electric, Crouse-Hinds, Thomas & Betts, Murray and ITE/Siemens load centers. 120/240 VAC, 10,000 AIC. Requires one 1 in (25.4 mm) space.
Products specifications
|
Actuator Type
|
Magnetic Thermal |
|
Current Rating
|
20 A |
|
Dimensions
|
3 in L x 1 in W x 3 in H |
|
Interrupt Rating
|
10 kA |
|
Mounting Type
|
Plug |
|
Number of Phases
|
1 |
|
Number of Poles
|
1 |
|
Operating Frequency
|
50/60 Hz |
|
Operating Temperature
|
60 to 75 deg C |
|
Suitable for
|
Square D HOMELINE General Electric Crouse-Hinds Thomas and Betts Murray and ITE/Siemens Load Centers |
|
Type
|
Type CL |
|
Voltage Rating
|
120/240 V |
|
Wire Size
|
14 to 4 AWG |
|
Brand
|
Cutler-Hammer |
|
Manufacturer
|
CUTLER-HAMMER |
