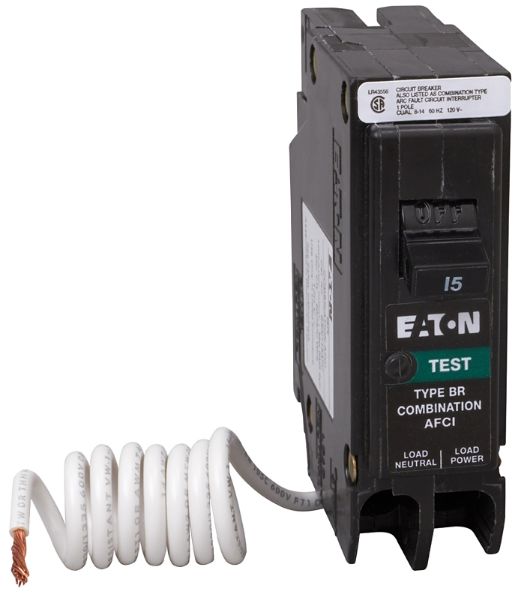

An arc fault circuit interrupter is a device intended to provide protection from the effects of arc faults by recognizing characteristics unique to arcing and by functioning to de-energize the circuit when the arc fault is detected. As of January 1, 2015, the Canadian Electrical Code now requires that all branch circuits that supply 125 V, single-phase, 15 and 20 A receptacle outlets installed in dwelling unit shall be protected by a combination arc fault circuit interrupter(s) (series arc and parallel arc detection).
Products specifications
|
Actuator Type
|
Magnetic Thermal |
|
Current Rating
|
15 A |
|
Dimensions
|
6 in L x 3-1/2 in W x 1 in H |
|
Interrupt Rating
|
10 kA |
|
Number of Phases
|
1 |
|
Number of Poles
|
1 |
|
Suitable for
|
CPM CPL CBRPM CBRPL Load Center |
|
Terminal Type
|
Plug-In |
|
Trip Type
|
Long Time Instantaneous |
|
Type
|
AFCI Combination Type BR |
|
Voltage Rating
|
120/240 VAC |
|
Wire Size
|
14 to 4 AWG |
|
Manufacturer
|
EATON INDUSTRIES CANADA |
