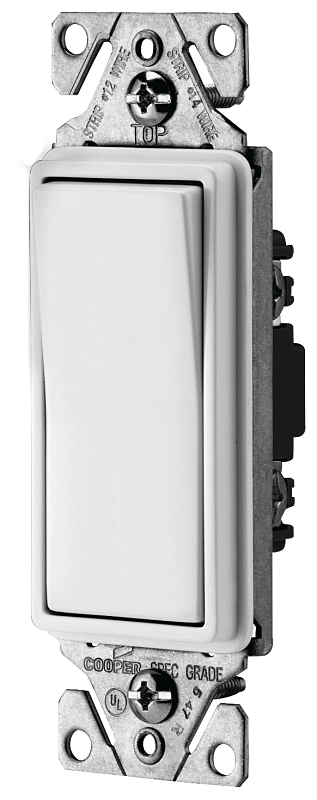

Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Redesigned paddle. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL Listed, Meets all UL20 requirements, file # E18704. Carded.
Products specifications
|
Contact Configuration
|
SPST |
|
Current Rating
|
15 A |
|
Dimensions
|
4.19 in L x 1.44 in W x 0.97 in D |
|
Housing Material
|
Thermoplastic |
|
Includes
|
(1) Metal Strap |
|
Mounting Type
|
Strap |
|
Temperature Rating
|
-20 to 60 deg C |
|
Terminal Type
|
Lead Wire |
|
Voltage Rating
|
120/277 V |
|
Brand
|
Eaton Wiring Devices |
|
Color
|
White |
|
Manufacturer
|
COOPER WIRING DEVICES |
