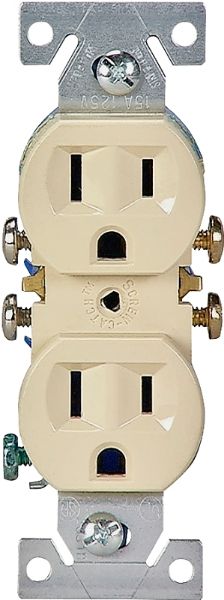

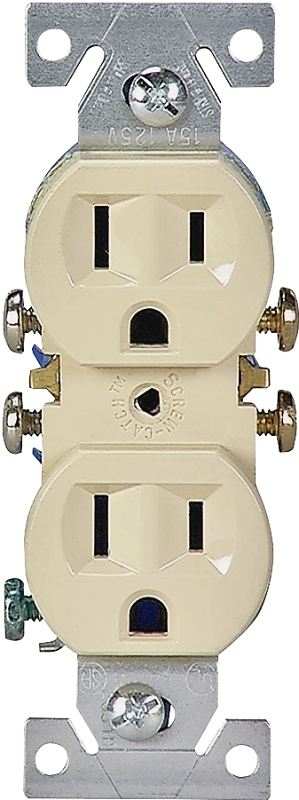

Built-in wire stripper for #14 wire. Built-in wire looper for pre-looping conductors. Screw-catch feature eliminates need to hand-thread screw and possible cross-threading. Double wipe ground contacts. Split circuit break-off tab. Side wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire only. 15 A/125 V. UL listed, NOM certified, meets CSA requirements.
Products specifications
|
Current Rating
|
15 A |
|
Dimensions
|
0.69 in D |
|
Frequency Rating
|
60 Hz |
|
Material
|
Thermoplastic |
|
Mounting Type
|
Flush |
|
NEMA Configuration
|
5-15R |
|
Number of Poles
|
2 |
|
Number Of Wires
|
3 |
|
Operating Temperature
|
-20 to 60 deg C |
|
Voltage Rating
|
125 V |
|
Wire Size
|
14 to 10 AWG |
|
Wiring Type
|
Push-In Side |
|
Color
|
Ivory |
|
Manufacturer
|
COOPER WIRING DEVICES |
