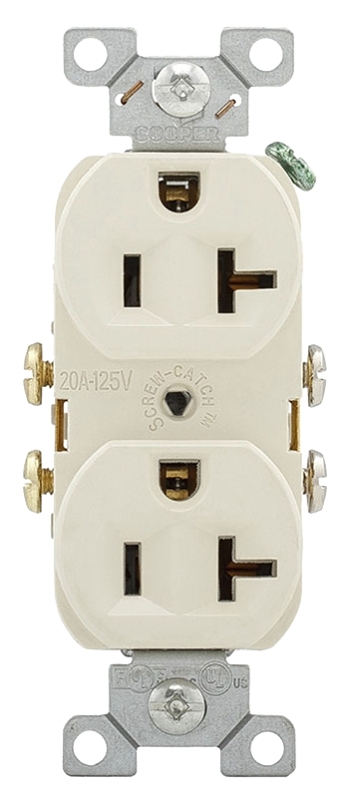

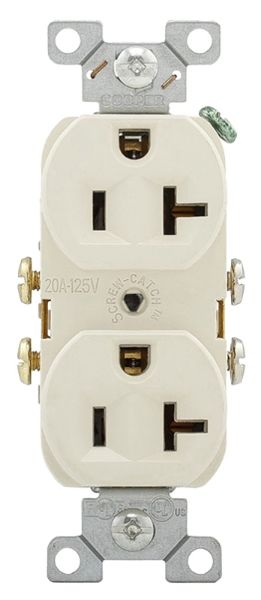

Commercial Specification Grade Straight Blade Receptacles, 20 A to 125 V, NEMA 5-20R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
Products specifications
|
Current Rating
|
20 A |
|
Dimensions
|
1.24 in L x 0.79 in W x 4 in H |
|
Material
|
PVC |
|
Mounting Type
|
Flush |
|
NEMA Configuration
|
5-20R |
|
Number of Poles
|
2 |
|
Number Of Wires
|
3 |
|
Operating Temperature
|
-20 to 60 deg C |
|
Voltage Rating
|
125 V |
|
Wire Size
|
14 to 10 AWG |
|
Wiring Type
|
Side |
|
Color
|
Light Almond |
|
Manufacturer
|
COOPER WIRING DEVICES |
