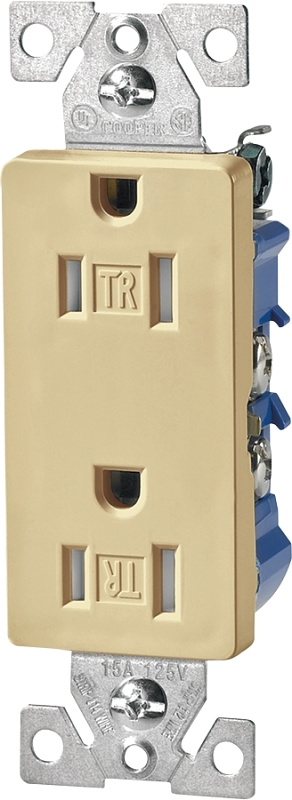

Tamper-resistant decorator receptacles. Provides compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. TR designation provides visual identification. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps with patented built-in wire stripper for #14 and #12 wire to speed installation. Side-wire terminals accept up to #10 solid or stranded wire and push-in terminals accept #14 solid wire.
Products specifications
|
Current Rating
|
15 A |
|
Dimensions
|
13 in L x 069 in W x 381 in H |
|
Material
|
Thermoplastic |
|
Mounting Type
|
Flush |
|
NEMA Configuration
|
5-15R |
|
Number of Poles
|
2 |
|
Number Of Wires
|
3 |
|
Operating Temperature
|
-4 to 140 deg F |
|
Voltage Rating
|
125 V |
|
Wire Size
|
14 to 10 AWG |
|
Wiring Type
|
Push Side |
|
Brand
|
Eaton Wiring Devices |
|
Color
|
Ivory |
|
Manufacturer
|
COOPER WIRING DEVICES |
