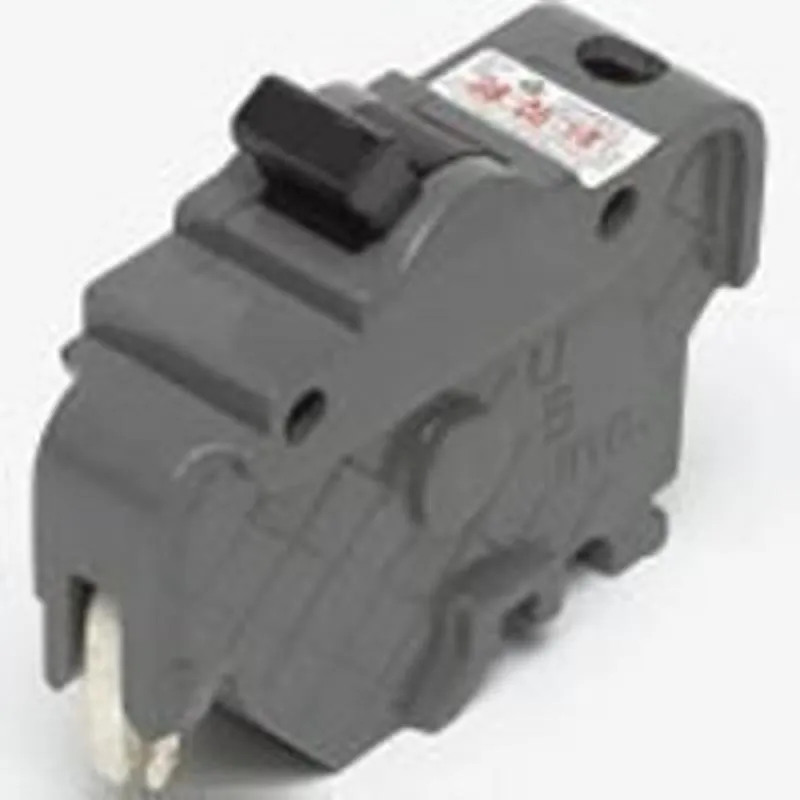

Replacement for Federal Pacific Load Centers. Single pole SWD rated, double pole is HACR rated. 120/240 VAC, 10,000 AIC.
Products specifications
|
Current Rating
|
30 A |
|
Dimensions
|
3.36 in L x 1 in W x 2.55 H |
|
Interrupt Rating
|
10 kA |
|
Mounting Type
|
Plug |
|
Number of Phases
|
1 |
|
Number of Poles
|
1 |
|
Operating Frequency
|
50/60 Hz |
|
Suitable for
|
Federal Pacific Electric load centers |
|
Terminal Type
|
Lug |
|
Trip Type
|
Standard |
|
Type
|
Type NA |
|
Voltage Rating
|
120 V |
|
Wire Size
|
14 to 4 AWG |
|
Brand
|
Federal Pacific |
|
Manufacturer
|
CONNECTICUT ELECTRIC |
