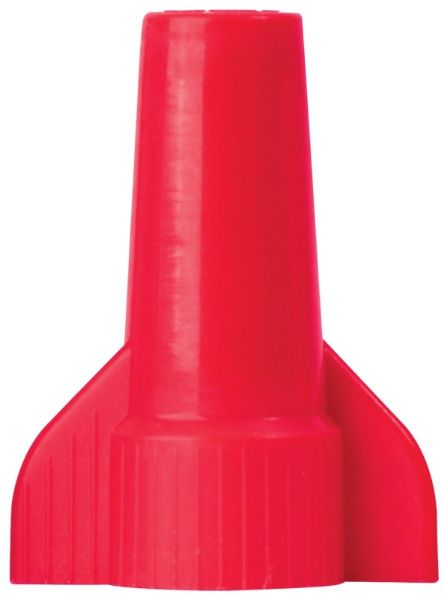

    GB WingGard #86 Series 16-086 Wire Connector, 22 to 6 AWG Wire, Steel Contact, Thermoplastic Housing

    • Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
    • Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
    • Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
    • Flame-retardant properties resist heat distortion up to 221 deg F
    • High-dielectric shell features deep skirt design to prevent exposure of bare wire
    SKU: G006-16086
    Brand part number: 16-086
    Availability:
    IN STOCK NOW : 15
    Ships in 2-3 DAYS : 68
    Price: Call For Price
    GB's WingGard twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one size can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.
    Products specifications
    Contact Coating Zinc
    Contact Material Steel
    Height 6.13 in
    Housing Material Thermoplastic
    Length 1-1/4 in
    Mounting Type Screw
    Voltage Rating 300/600 V
    Width 29/32 in
    Wire Size 22 to 6 AWG
    Brand GB
    Color Red
    Manufacturer GARDNER BENDER
