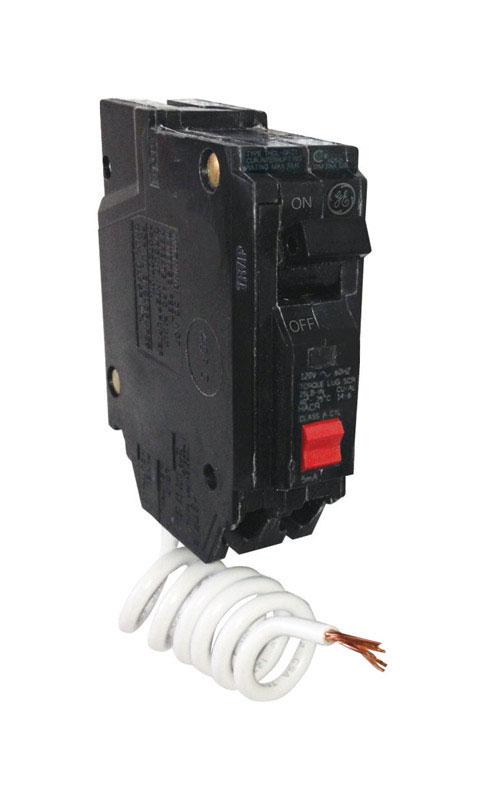

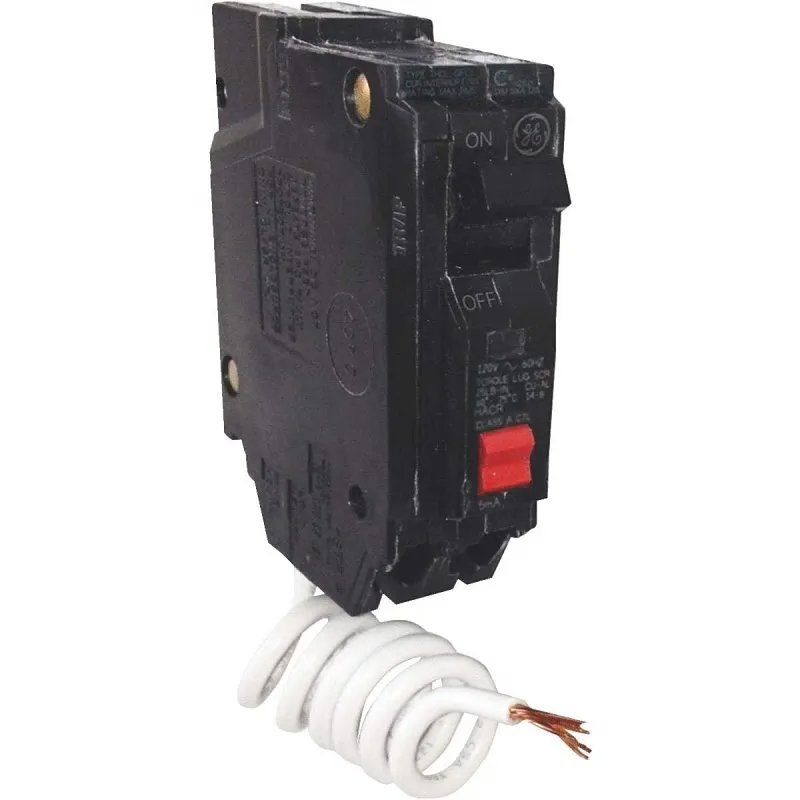

Tin plated copper stab to create a reliable, permanent and corrosion-resistant connection. Ensures its ground circuitry is functioning properly by automatically running diagnostic testing on a periodic basis. Should a problem be detected, the circuit breaker will trip and will need to be replaced. Unit provides protection against overloads, short circuits and ground faults. Class A 5 mA ground fault circuit interrupter. Wire range is #14 to 8 AWG CU/#12 to 8 AWG AL. UL listed. 4-1/2 in H x 1-1/4 in W x 3 in depth, 0.479 lb.
Products specifications
|
Actuator Type
|
Quick-Make Quick-Break |
|
Current Rating
|
20 A |
|
Frame Type
|
Q-Line |
|
Interrupt Rating
|
10 kA |
|
Mounting Type
|
Plug |
|
Number of Phases
|
1 |
|
Number of Poles
|
1 |
|
Operating Frequency
|
50/60 Hz |
|
Operating Temperature
|
60 to 75 deg C |
|
Suitable for
|
Reverse Feed |
|
Terminal Type
|
Screw Clamp |
|
Trip Type
|
Non-Interchangeable |
|
Type
|
Thermal Magnetic |
|
Voltage Rating
|
120 V |
|
Wire Size
|
14 to 8 12 to 8 AWG |
|
Brand
|
GE Industrial Solutions |
|
Manufacturer
|
GE ELECTRICAL |
