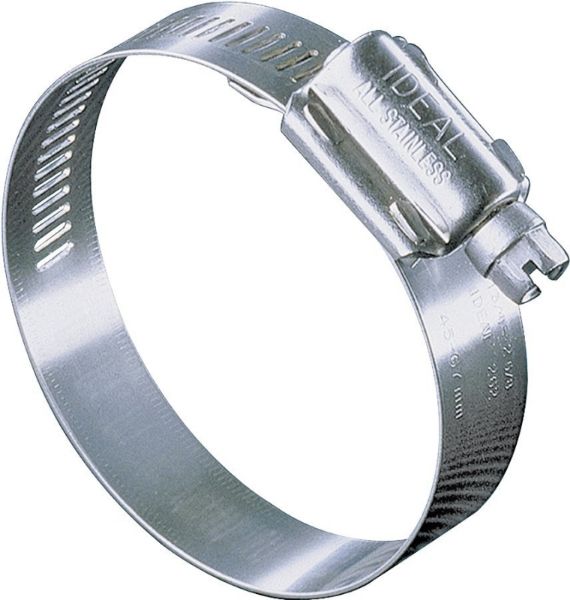

Features a full-size 9/16 in band and housing width that allows 12-1/2% more sealing area over conventional 1/2 in bands. One-piece housing and interlocked construction. Mechanical design locks the one piece housing directly to the band using the full strength of the material to provide maximum anti-shear protection. No spot welds to rupture under stress or corrosion. One-piece housing will not come apart under high loading. 5/16 in hex-head screw. Especially suited to industrial applications.
Products specifications
Bolt Material
|
Stainless Steel |
Grade
|
200 |
Height
|
5.0 in |
Hex Bolt Size
|
5/16 in |
Material
|
Stainless Steel |
Nominal Opening Size
|
1-1-4 to 2-1/4 in |
Trade Size
|
28 |
Width
|
9/16 in |
Brand
|
Ideal |
Manufacturer
|
IDEAL |
