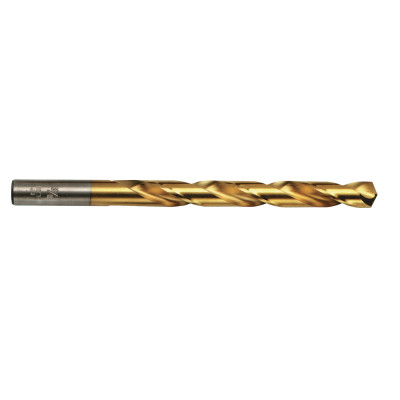

IRWIN 63914 Jobber Drill Bit, 7/32 in Dia, 3-3/4 in OAL, Spiral Flute, 2 -Flute, 7/32 in Dia Shank,

Be the first to review this product

Titanium Nitride (TiN) coating resists heat and friction, providing up to 6X longer life than standard high-speed steel bits
Heavy-duty web design provides extreme rigidity when drilling in metal applications
Heavy-duty web design provides extreme rigidity when drilling in metal applications
Shorter cutting lips reduce torque for drilling in high tensile strength materials
135 deg split point reduces feed pressure for easier penetration without work hardening and tip point ensures a true start and eliminates bit walking

SKU: I008-63914

Brand part number: 63914

Availability:

IN STOCK NOW : 27

Ships in 2-3 DAYS : 140

Call For Price

Overview
Specifications
Reviews
Contact Us

Titanium nitride coating reduces friction and last longer, cutting edge stays sharper longer. Used in repetitive metal drilling with portable drills or stationary drill press. Jobber length.

Products specifications

Applicable Materials	Cast Iron High Alloy Steel Mild Steel Sheet Metal Stainless Steel Wood
Cutting Direction	Clockwise
Diameter	7/32 in
Finish	Titanium Nitride-Coated
Flute Length	2-1/2 in
Flute Type	Spiral
Material	HSS
Number Of Flutes	2
Overall Length	3-3/4 in
Point Angle	135 deg
Point Type	Split
Shank Diameter	7/32 in
Shank Length	1-1/4 in
Shank Type	Straight
Brand	IRWIN
Manufacturer	BRAWNY INDUSTRIAL
