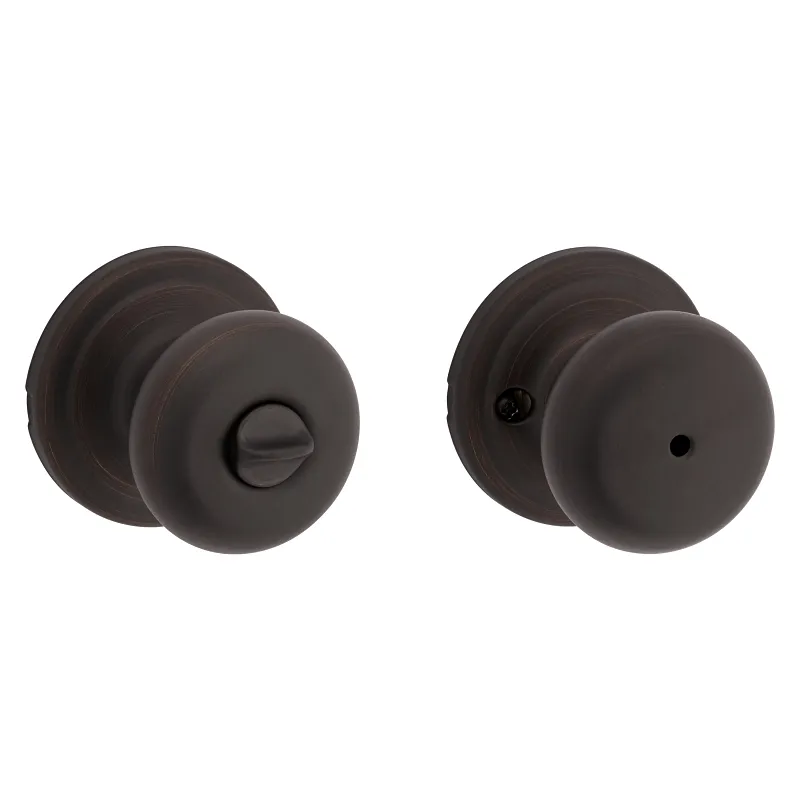

For bedroom and bathroom doors. Both knobs locked or unlocked by turnbutton inside. Outside knob unlocks by emergency key. Features titanium alloy throwbolt core, anti-pick 6 pin system and ultra-strike for jamb brace. DOOR PREP: 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: 2-3/8" - 2-3/4" adjustable. DOOR THICKNESS: 1-3/4" doors standard. 2-1/4" doors optional. CYLINDER: 6-pin removable core. 5-pin optional. FACEPLATE: 1" x 2-1/4". STRIKE: 2-1/4" full lip. BOLT: 1" throw. Nickel plated. HANDING: Reversible for right or left hand doors. ANSI/BHMA: Grade 2.
Products specifications
|
Backset Size
|
2-3/8 x 2-3/4 in |
|
Bolt Throw Size
|
1/2 in |
|
Cross Bore Diameter
|
2-1/8 in |
|
Cylinder Type
|
5-Pin |
|
Door Handing
|
Reversible |
|
Door Thickness
|
1-3/8 to 1-3/4 in |
|
Edge Bore Diameter
|
1 in |
|
Faceplate Size
|
1 x 2-1/4 in |
|
Finish
|
Venetian Bronze |
|
Re-Key Technology
|
SmartKey |
|
Security Grade
|
2 |
|
Strike Size
|
2-1/4 in |
|
Strike Type
|
Full Lip |
|
Suitable for
|
Bedroom Bathroom Doors |
|
Manufacturer
|
KWIKSET |
