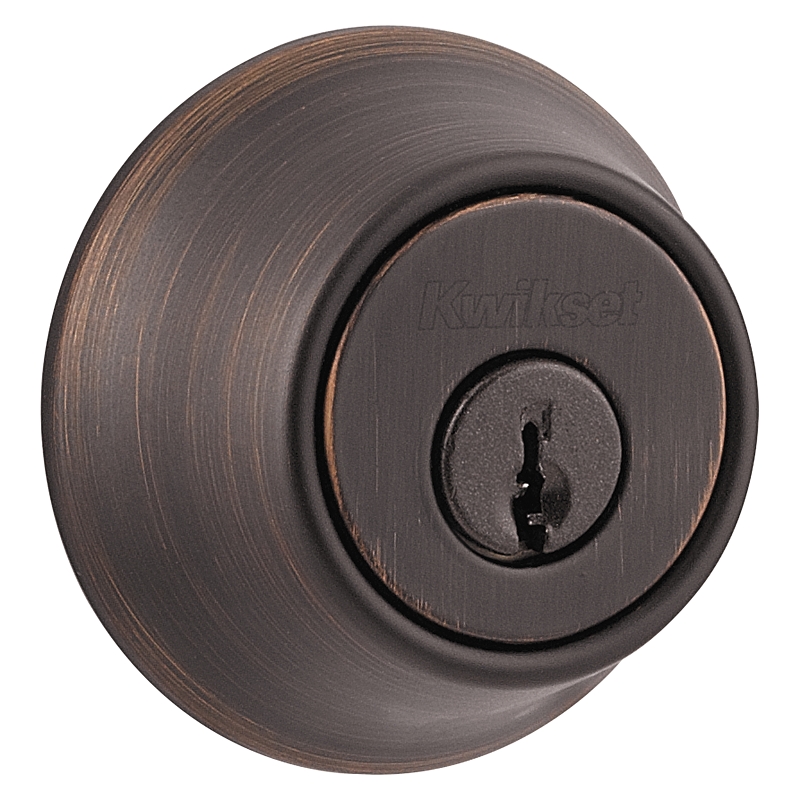

Operated by key outside and inside. Security deadbolts feature full 1 in solid core throw bolt, all metal mechanisms, anti-pry shield and pick-resistant 5-pin system. Door prep 2-1/8 in crossbore, 1 in edge bore, 1 in x 2-1/4 in latch face. Backset adjustable 2-3/8 to 2-3/4 in. Door thickness fits 1-3/8 to 1-3/4 in doors. Cylinder 5-pin. Faceplates of 1 in x 2-1/4 in round corner. Strikes of 1 in x 2-1/4 in round corner. Bolt 1 in throw. Reversible for right or left handed doors. ANSI/BHMA Grade 3.
Products specifications
|
Backset Size
|
2-3/8 2-3/4 in |
|
Cross Bore Diameter
|
2-1/8 in |
|
Dimensions
|
2-7/16 in H |
|
Door Thickness
|
1-3/4 to 1-3/8 in |
|
Edge Bore Diameter
|
1 in |
|
Faceplate Size
|
1 x 2-1/4 in |
|
Finish
|
Venetian Bronze |
|
Material
|
Steel |
|
Number of Cylinders
|
2 |
|
Projection Size
|
1-1/16 in |
|
Security Grade
|
3 |
|
Strike Size
|
1 x 2-1/4 in |
|
Strike Type
|
Round Corner |
|
Suitable for
|
Standard Doors |
|
Throw Length
|
1 in |
|
Manufacturer
|
KWIKSET |
