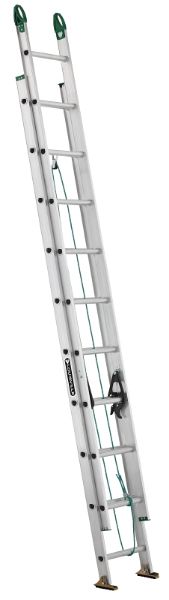

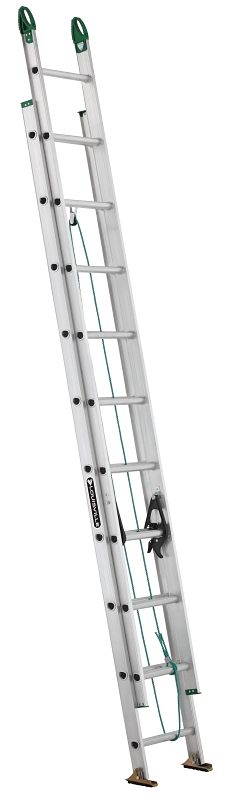

This Louisville 20 ft aluminum extension ladder has a 225 lb load capacity, rated ANSI type II. It is equipped with the maxlock rung lock, custom engineered from a patented, advanced molecular polymer, maxlock is the strongest, toughest, lightest rung lock ever made. This ladder also includes the patented progrip slip-resistant tread integrated onto the ladder caps to protect the work surface from damage. Quicklatch runglock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder also features outside slide guides, D-shape rungs fully serrated for a slip-resistant surface, rope and pulley, modified I-beam for a more stable connection and to prevent twisting and swivel safety shoes to be used as tread down or in-spike position.
Products specifications
|
Base Width
|
15-1/4 in Inside 17-1/8 in Outside |
|
Closed Depth
|
6-5/8 in |
|
Closed Height
|
127-3/4 in |
|
Closed Volume
|
8.816 cu-ft |
|
Closed Width
|
18 in |
|
Duty Rating
|
Type II |
|
Extension Length
|
17 ft |
|
Fly Width
|
14-5/16 in Inside 16-3/16 in Outside |
|
Includes
|
Rope and Pulley |
|
Material
|
Aluminum |
|
Number of Steps
|
20 |
|
Open Width
|
20 in |
|
Opening Height
|
20 ft |
|
Rail Depth
|
3 in |
|
Rail Type
|
I-Beam |
|
Reach Height
|
240 in |
|
Rung Type
|
D-Shaped |
|
Section Length
|
10 ft |
|
Stack Height
|
5-1/4 in |
|
Standing Height
|
161 in |
|
Step Depth
|
1-1/2 in |
|
Weight Capacity
|
225 lb |
|
Work Area
|
17 ft |
|
Brand
|
Louisville |
|
Size
|
20 ft |
|
Manufacturer
|
LOUISVILLE |
