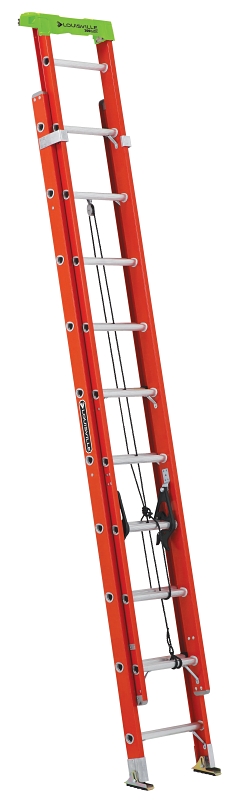

This Louisville 20 ft fiberglass extension ladder has a 300 lb load capacity, rated ANSI type I. This ladder is equipped with our patented ProTop specially designed to increase productivity. this innovative ProTop features a corner grip, pole grip, integrated bumper and work tray, all compact and accessible in a spacious design. it is equipped with the maxlock rung lock, custom engineered from a patented, advanced molecular polymer, maxlock is the strongest, toughest, lightest rung lock ever made. This ladder also features outside slide guides, fully serrated D-shape rungs for a slip-resistant surface, non-marring rail end caps, quicklatch rung lock for better secure operation, rope and pulley and full heavy-duty metal boot with steel swivel safety shoes to be used with the tread down or in-spike position.
Products specifications
|
Adjustable Increments
|
12 in |
|
Base Spread Size
|
6.38 in |
|
Base Width
|
14.645 in Inside 17.045 in Outside |
|
Bottom Width
|
17-11/16 in |
|
Closed Depth
|
6-3/8 in |
|
Closed Height
|
126 in |
|
Closed Volume
|
8.28 cu-ft |
|
Closed Width
|
17.812 in |
|
Duty Rating
|
Type IA |
|
Extension Length
|
17 ft |
|
Fly Width
|
13-11/16 in Inside 16.0875 in Outside |
|
Includes
|
Rail Endcaps Rope and Pulley |
|
Material
|
Fiberglass |
|
Number of Rungs
|
20 |
|
Opening Height
|
20 ft |
|
Rail Depth
|
3-1/4 in |
|
Rail Type
|
Non-Conductive |
|
Reach Height
|
240 in |
|
Rung Size
|
10 ft |
|
Rung Type
|
D-Shaped |
|
Section Length
|
10 ft |
|
Stack Height
|
5-7/8 in |
|
Standing Height
|
161 in |
|
Step Depth
|
1-1/2 in |
|
Weight Capacity
|
300 lb |
|
Work Area
|
17 ft |
|
Brand
|
Louisville |
|
Color
|
Orange |
|
Size
|
20 ft |
|
Manufacturer
|
LOUISVILLE |
