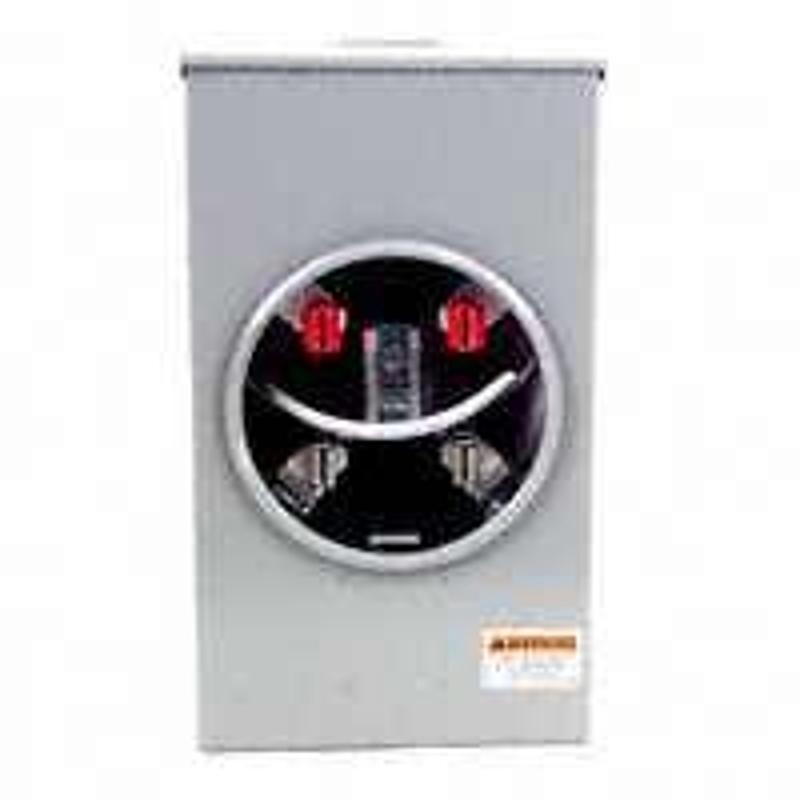

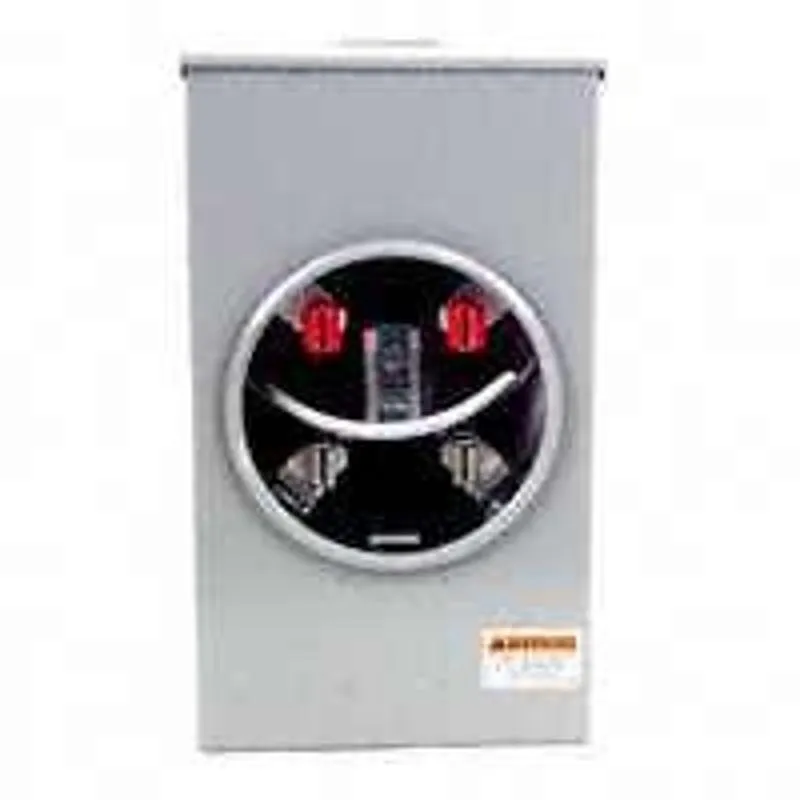

Single-phase, 3-wire, 4-jaw, 600 V maximum. Jaws fabricated from high conductivity, tin-plated, copper alloy. Insulating jaw support blocks of high impact, non-tracking thermoset polyester. Galvanized steel enclosure. Safety guides reduce chances of accidental contact and aligns meter in sock. Uses RX style hub (not included). Provision for 5th jaw, no bypass. UL listed.
Products specifications
|
Cable Entry
|
Overhead |
|
Current Rating
|
200 A |
|
Dimensions
|
5.8 in H x 8.7 in W x 16.9 in D |
|
Enclosure Type
|
NEMA 3R |
|
Interrupt Rating
|
10 kA |
|
Material
|
Steel |
|
Mounting Type
|
Surface |
|
Number of Jaws
|
4 |
|
Number of Phases
|
1 |
|
Voltage Rating
|
300 V |
|
Wire Size
|
6 AWG to 350 kcmil |
|
Brand
|
Siemens |
|
Manufacturer
|
SIEMENS ENERGY |
