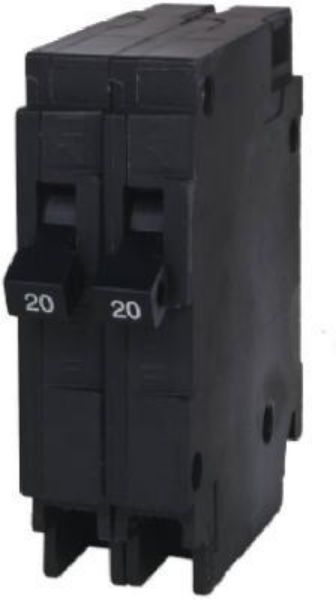

Complete, unenclosed, molded case breaker with non-interchangeable trip. Takes the place of 2 single pole breakers in 1 in of space. Wire range: CU front #14 to # 8, AI from #12 to #6. Will replace American Switch, Westinghouse Type BR, Bryant, Challenger, Sylvania, Crouse-Hinds, Murray, Frank Adams, General Electric (full size only), General Switch, I-T-E, Gould, Montgomery Ward and Sears. HACR rated. 120/240 VAC, 10,000 AIR.
Products specifications
|
Actuator Type
|
Toggle |
|
Current Rating
|
15 A |
|
Dimensions
|
1 in L x 3 in W x 3 in H |
|
Frame Type
|
QT |
|
Interrupt Rating
|
10 kA |
|
Mounting Type
|
Plug |
|
Number of Phases
|
1 |
|
Number of Poles
|
1 |
|
Operating Frequency
|
50/60 Hz |
|
Operating Temperature
|
40 deg C |
|
Suitable for
|
Siemens EQ Load Centers |
|
Terminal Type
|
Lug |
|
Trip Type
|
Fixed |
|
Type
|
Duplex Mini |
|
Voltage Rating
|
120/240 V |
|
Wire Size
|
12 to 8 14 to 8 AWG |
|
Brand
|
Siemens |
|
Manufacturer
|
SIEMENS ENERGY |
