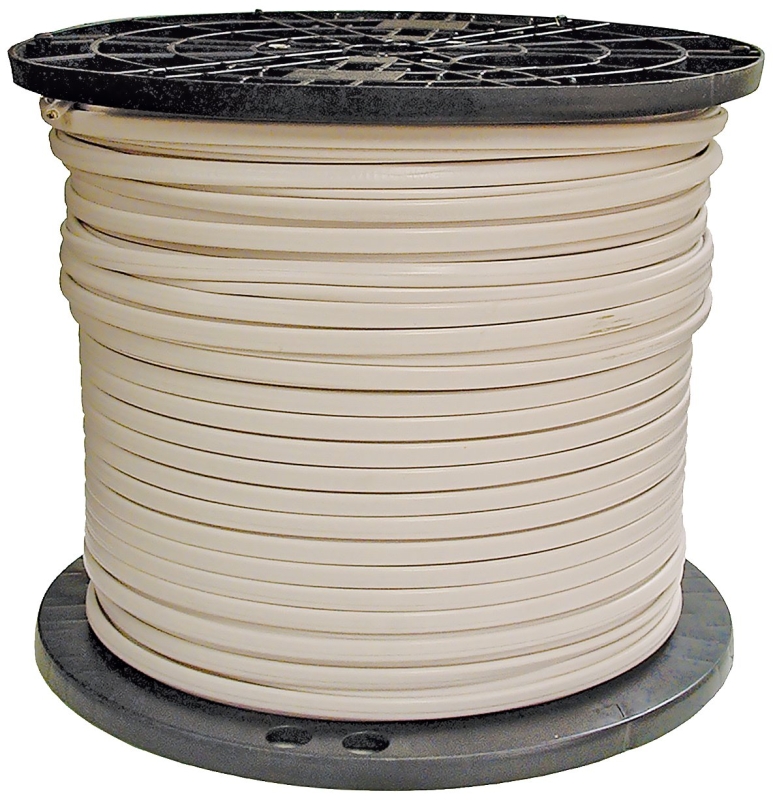

Southwire 14/2NM-WGX1000 Sheathed Cable, 14 AWG Wire, 2-Conductor, Copper Conductor, PVC Insulation,

Be the first to review this product

SIMpull jacket designed for easier pulling
Color-coded jacket
Color-coded jacket

SKU: S007-26301

Brand part number: 14/2NM-WGX1000

Availability:

IN STOCK NOW : 0

Ships in 2-3 DAYS : 17

Inner conductors are type THHN, rated 90 deg C, 600 V. Solid strands. Outer jacket is PVC, rated at 75 deg C. Amp rating of the product is limited to that for 60 deg C rated conductors per the National Electric Code Article 336. Dwellings not exceeding 3 floors above grade. Exposed or concealed wiring. May be fished through walls, ceilings and masonry blocks. Use for new wiring or replacement wiring. Only for use in normally dry locations. UL listed.

Products specifications

Conductor Insulation	PVC
Conductor Material	Copper
Current Rating	15 A
Length	1000 in
Number of Conductors	2
Operating Temperature	90 deg C
Sheath Color	White
Sheath Material	Nylon
Strands per Conductor	1
Type	NM-B
Voltage Rating	600 V
Wire Size	14 AWG
Brand	Southworth
Manufacturer	SOUTHWORTH
