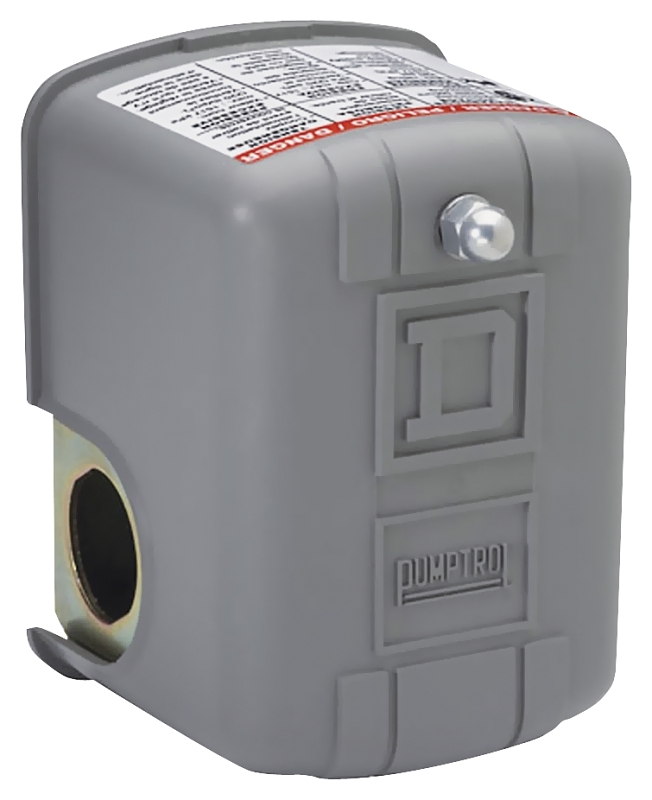

Water pump and air compressor pressure switch with 20 to 40 psi cut-in/cut-out settings. Designed to control higher water pumps and air compressors requiring higher electrical ratings. 2-Pole, NEMA 1 enclosure, 1/4 in NPSF internal pressure connection, diaphragm actuated, UL/CSA Listed, RoHS compliant, NSF61-Annex G certified. Individually boxed.
Products specifications
|
Connection Type
|
1/4 in NPS Female |
|
Contact Form
|
DPST |
|
Current Rating
|
10 A |
|
Diaphragm Material
|
Nitrile |
|
Electrical Connection Type
|
Screw Clamp Terminal |
|
Enclosure Type
|
NEMA 1 |
|
Number of Phases
|
3 |
|
Operating Cycles
|
100000 |
|
Port Type
|
Single |
|
Temperature Rating
|
-22 to 257 deg F |
|
Voltage Rating
|
115/575 V |
|
Brand
|
Square D |
|
Manufacturer
|
- No Manufacturer - |
