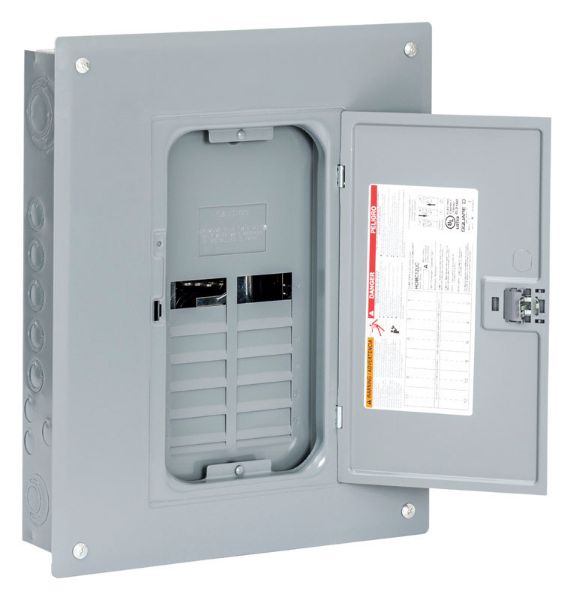

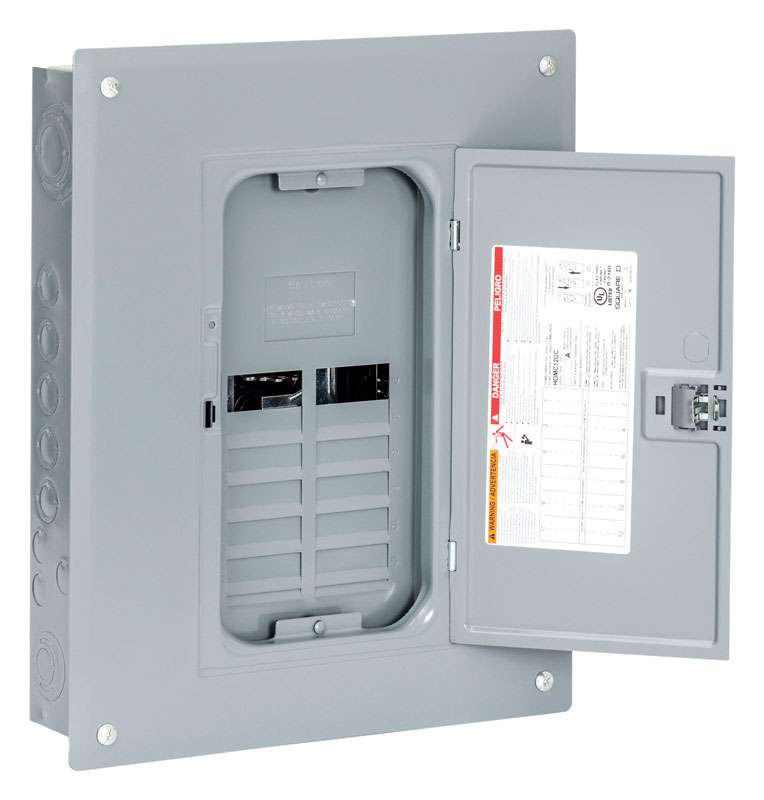

Main lug indoor load center. Convertible to a main breaker with a QOM1 main breaker. Single-phase load center, NEMA type 1 enclosure, combination flush/surface indoor cover. Overhead or underground feed options. Plated aluminum bus bar. UL listed.
Products specifications
|
Breaker/Load Center Type
|
Main Lug |
|
Bus Bar Material
|
Aluminum |
|
Cable Size
|
6 to 2/0 6 to 1 |
|
Cover/Lid Type
|
Flush |
|
Current Rating
|
125 A |
|
Enclosure Type
|
NEMA 1 |
|
Finish
|
Baked Enamel |
|
Includes
|
PK15GTAL Ground Bar |
|
Interrupt Rating
|
22 kA |
|
Mounting Type
|
Plug |
|
Number of Circuits
|
16 |
|
Number of Phases
|
1 |
|
Number Of Spaces
|
8 |
|
Voltage Rating
|
120/240 V |
|
Wiring Configuration
|
3-Wire |
|
Brand
|
Square D |
|
Color
|
Gray |
|
Manufacturer
|
- No Manufacturer - |
