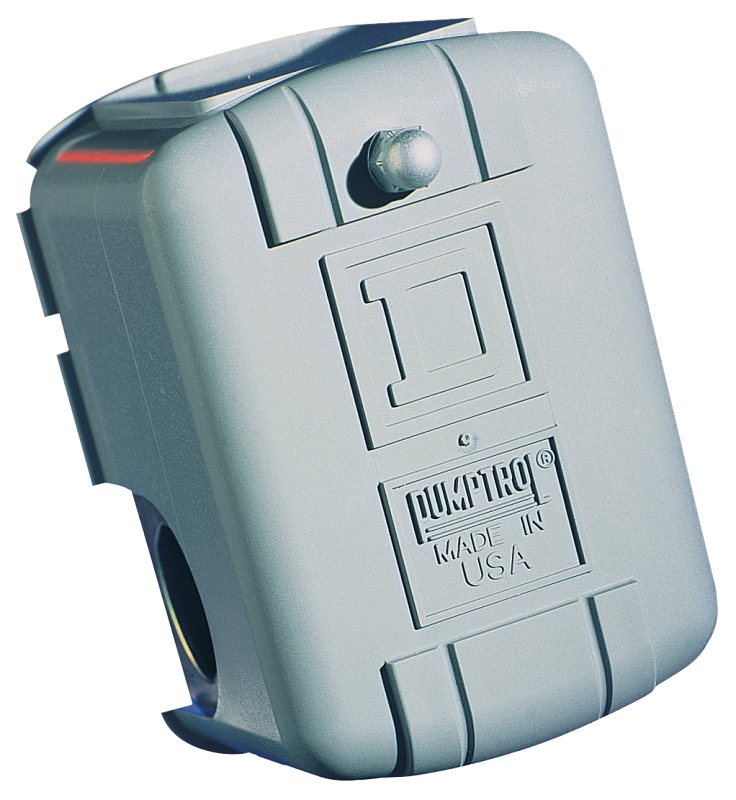

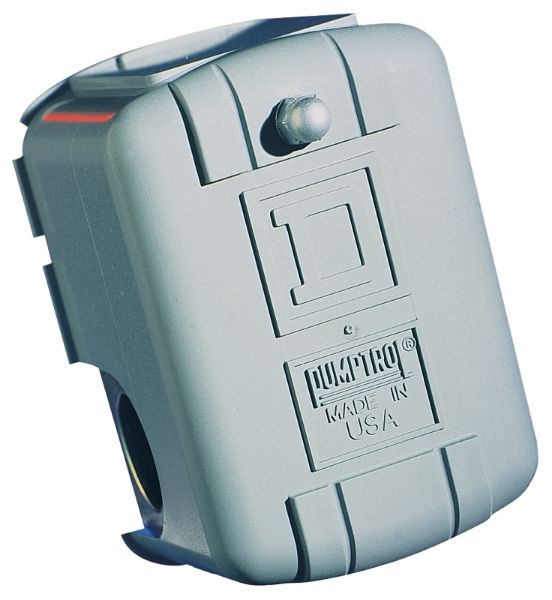

Water pump pressure switch factory set to 20 to 40 psi. Suitable for use on all types of pumps including jet, submersible and reciprocating. 2 Pole, NEMA Type 1 indoor enclosure, 1/4 in NPSF internal pressure connection, diaphragm actuated, UL/CSA listed, RoHS compliant, NSF61-Annex G certified, includes low-pressure cut-off to stop pump in the event of run dry or a line break. Individually boxed.
Products specifications
|
Connection Type
|
1/4-18 NPS Female |
|
Contact Form
|
2-Pole |
|
Enclosure Type
|
NEMA 1 |
|
Number of Phases
|
1 |
|
Operating Cycles
|
100000 |
|
Suitable for
|
Water Pumps |
|
Voltage Rating
|
115/230 V |
|
Working Pressure
|
220 psi |
|
Brand
|
Square D |
|
Manufacturer
|
- No Manufacturer - |
