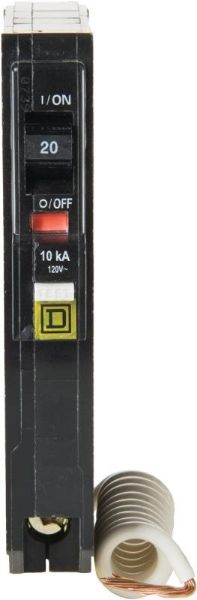

Combination CAFCI 3/4 in single-pole circuit breaker, designed for overload and over-current protection of an electrical system. Thermal-magnetic tripping mechanism. Designed to detect arcs that are caused by damaged, aged or improperly used wires or cords and to disconnect the power. Visi-Trip indicator to identify which circuit is out in the load center. With Time-Saver Diagnostics, advanced trip indication technology, identifying the type of fault that last occurred. 10kA interrupting rating. Uses one space per breaker. 120 VAC. UL listed. Carded.
Products specifications
|
Current Rating
|
20 A |
|
Dimensions
|
2-29/32 in L x 3/4 in W x 4-3/4 in H |
|
Interrupt Rating
|
10 kA |
|
Mounting Type
|
Plug |
|
Number of Phases
|
1 |
|
Number of Poles
|
1 |
|
Number Of Spaces
|
1 |
|
Terminal Type
|
Pressure Contact |
|
Trip Type
|
Fixed |
|
Type
|
AFCI |
|
Voltage Rating
|
120/240 V |
|
Wire Size
|
12 to 8 14 to 8 AWG |
|
Brand
|
Square D |
|
Manufacturer
|
- No Manufacturer - |
