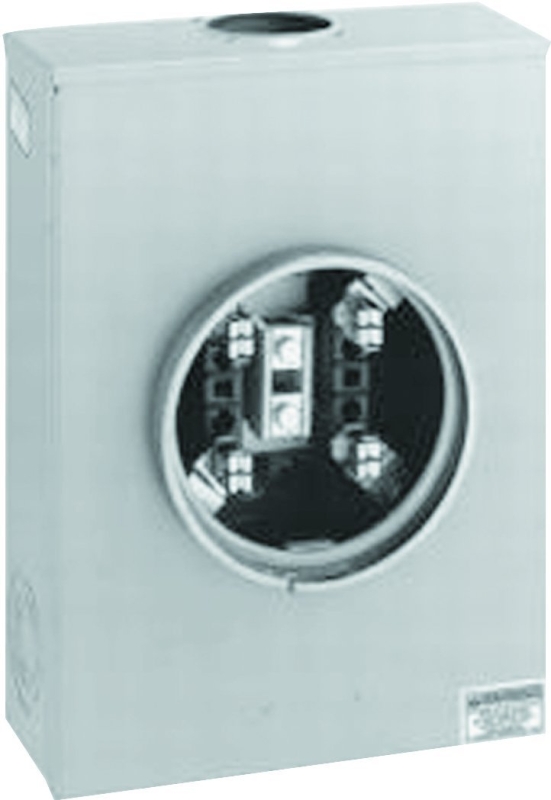

Single phase, 3-wire, 4-jaw, 600 VAC maximum. Without bypass or jaw release. Steel enclosure material. Unit supplied with bonded neutral. 10,000 RMS symmetrical ampere short circuit current rating. Type-A hub provisions and the bottom end-wall has a 2-1/2 in maximum knockout. Metering is utility specific. Always check with local utility company before installing. UL listed.
Products specifications
|
Cable Entry
|
Overhead Underground |
|
Current Rating
|
200 A |
|
Dimensions
|
15 in H x 11.6 in W x 5.4 in D |
|
Enclosure Type
|
NEMA 3R |
|
Material
|
Steel |
|
Number of Jaws
|
4 |
|
Number Of Knockouts
|
8 |
|
Number of Phases
|
1 |
|
Voltage Rating
|
600 V |
|
Wire Size
|
1/0 AWG to 350 kcmil 14 to 2 AWG |
|
Manufacturer
|
- No Manufacturer - |
