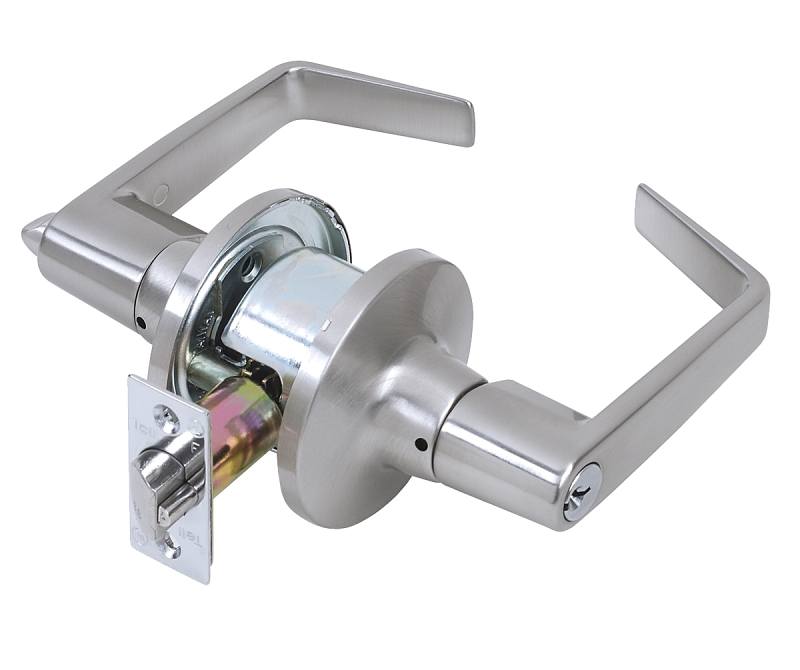

Complies with ANSI A156.2, Grade 2 (400,000 cycles) lever, UL listed for 3 hr fire door. Door range of 1-3/8 to 2 in. Backset of 2-3/4 in standard. Strike, T-strike (1-1/8 in x 2-3/4 in). Cylindrical, steel-coated with zinc dichromate (corrosion resistance). Latch bolt is operated by a lever from either side, outside lever is locked by turn button from inside, it is unlocked by a key from outside or rotating inside lever. There is a six-pin SCC keyway with two nickel keys per lock.
Products specifications
|
Backset Size
|
2-3/4 in |
|
Bolt Throw Size
|
1/2 in |
|
Door Thickness
|
1-3/8 to 2 in |
|
Edge Bore Diameter
|
1 in |
|
Faceplate Size
|
1 x 2-1/4 in |
|
Finish
|
Satin Chrome |
|
Keyway Type
|
C |
|
Latch Housing Diameter
|
3/4 in |
|
Lock Type
|
Turnbutton |
|
Material
|
Steel |
|
Rose/Base Dimensions
|
3 in |
|
Security Grade
|
2 |
|
Strike Size
|
1-1/8 x 2-3/4 in |
|
Strike Type
|
T-Style |
|
Suitable for
|
1-3/8 to 2 in THK Doors |
|
Throw Length
|
1/2 in |
|
Type
|
Light-Duty |
|
Manufacturer
|
LBP MANUFACTURING PRODUCTS |
