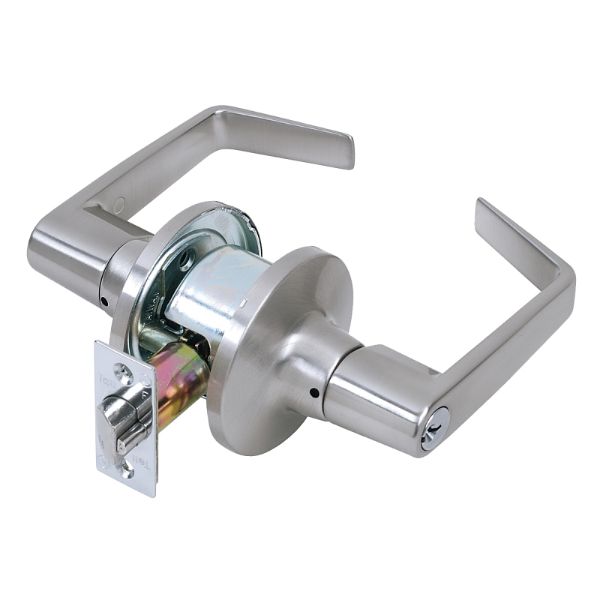

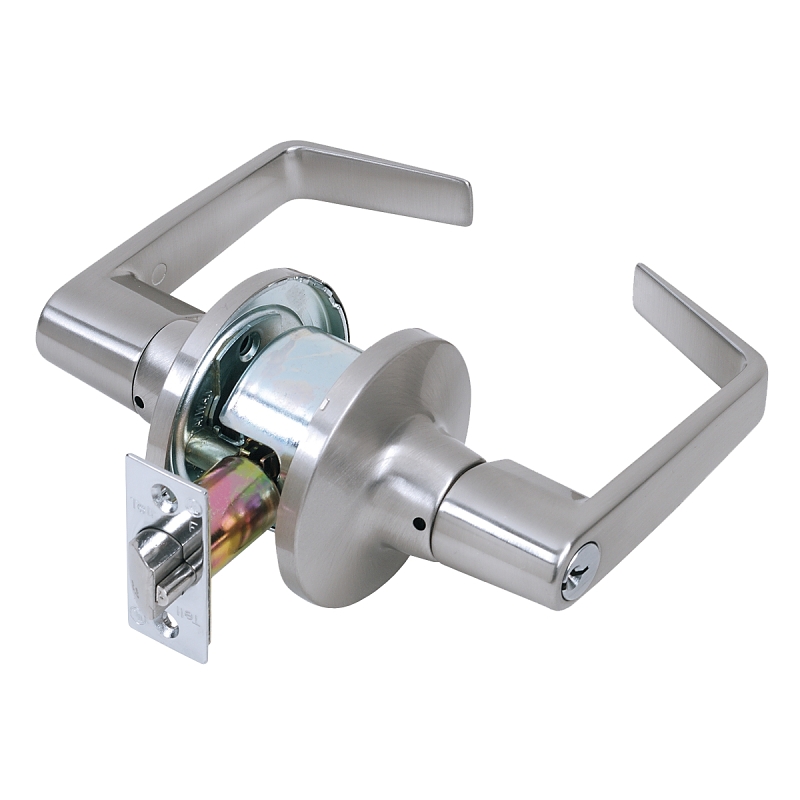

Heavy-duty commercial storeroom lever, complies with ANSI A156.2, Grade 2 (400,000 cycles), UL listed for 3 hr fire door, ANSI A117.1 American Disabilities Act (ADA). Keying of six-pin SCC keyway with two nickel keys per lock. Door range of 1-3/8 to 2 in. Backset of 2-3/4 in standard. Strike, T-strike (1-1/8 in x 2-3/4 in) standard. Cylindrical, steel-coated with zinc dichromate (corrosion resistance). Latch bolt operated by rotating inside lever or key in outside lever. Outside lever always fixed.
Products specifications
|
Backset Size
|
2-3/8 to 2-3/4 in |
|
Commercial/Residential
|
Commercial |
|
Door Thickness
|
1-3/8 to 2 in |
|
Finish
|
Satin Chrome |
|
Keyway Type
|
SCC |
|
Material
|
Steel |
|
Strike Size
|
1-1/8 x 2-3/4 in |
|
Strike Type
|
T-Style |
|
Manufacturer
|
LBP MANUFACTURING PRODUCTS |
