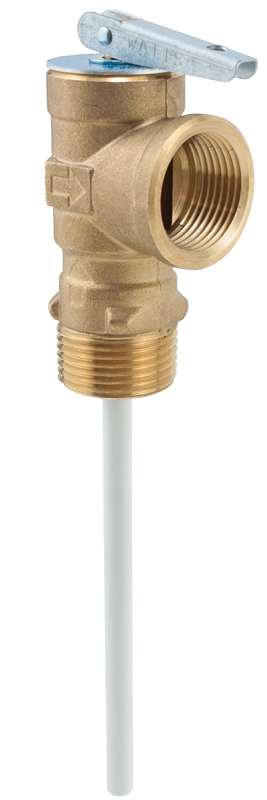

Used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 Btu/hr. Features a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating and a test lever. ASME rated and CSA listed. Temperature relief is 210 deg F (99 deg C), pressure relief range is 75 to 150psi (5.2 to 10.3 bar).
Products specifications
|
Body Material
|
Brass |
|
Connection Type
|
MNPT x FNPT |
|
Nominal Size
|
3/4 in |
|
Operating Pressure
|
75 to 150 psi |
|
Temperature Rating
|
210 deg F |
|
Brand
|
Watts |
|
Manufacturer
|
WATTS |
