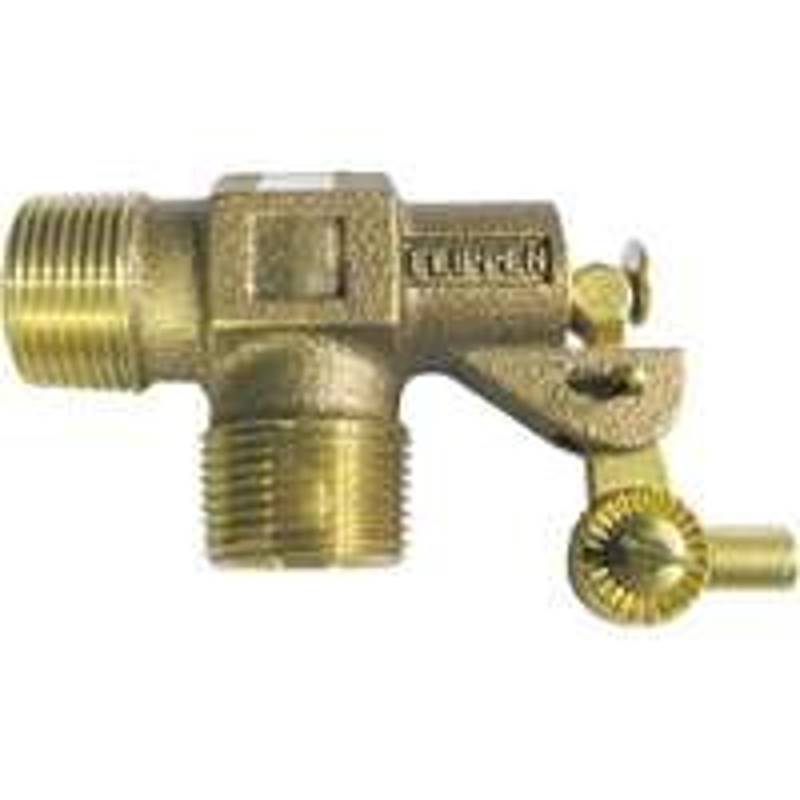

Series ST1000 standard duty mechanical float valves are used in commercial, industrial and agricultural applications for controlling water flow. It has a bronze body construction with 1 in male NPT threaded end connections, cotter pin pivot arm assembly, replaceable seals and replaceable plungers. This Series is ideal for use in air conditioning, refrigeration and irrigation systems.
Products specifications
|
Body Material
|
Bronze |
|
Connection Type
|
FNPT |
|
Flow Rate
|
100 to 150 gpm |
|
Nominal Size
|
1 in |
|
Outlet Connection Size
|
2 in |
|
Pressure Rating
|
125 psi |
|
Rod Length
|
1 in |
|
Rod Material
|
Brass |
|
Rod Thread
|
1/4-20 |
|
Temperature Rating
|
180 deg F |
|
Manufacturer
|
WATTS |
