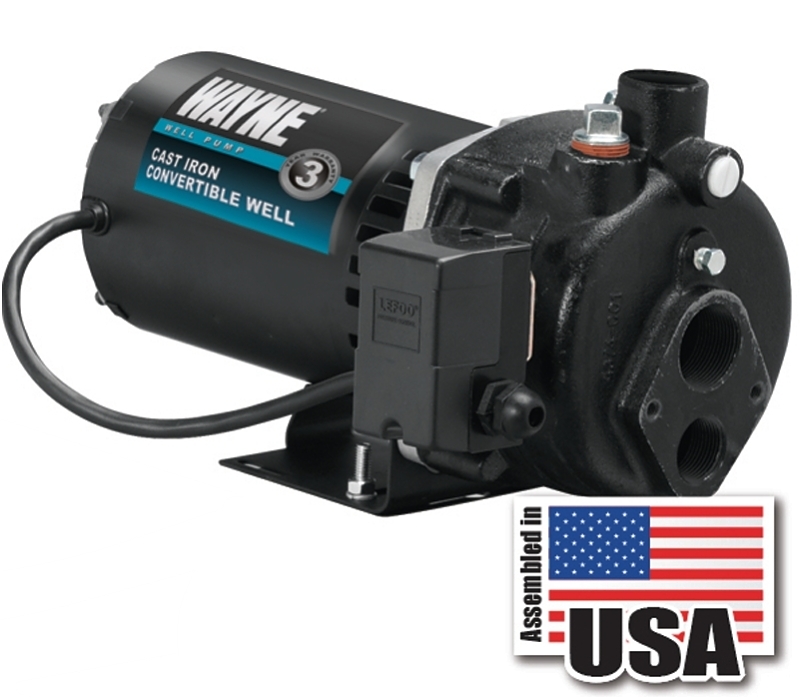

Jet pumps are single-stage domestic water pumps designed for pumping potable water in applications where the water is up to 100 ft below pump center line. A pressure switch is a standard feature. A built-in control valve is available on deep well pumps. Deep well pumps can be mounted to either a pre-charged, conventional type or free- standing pressure tank.
Products specifications
|
Connection Size
|
1-1/4 in Suction 3/4 in Discharge |
|
Connection Type
|
NPT |
|
Flow Rate
|
408 gph |
|
Frequency Rating
|
60 Hz |
|
HP Rating
|
0.5 hp |
|
Material
|
Iron |
|
Maximum Head
|
90 ft |
|
Motor Type
|
Dual Voltage |
|
Pressure Rating
|
50 psi |
|
Suitable for
|
0 to 90 ft Depth Wells |
|
Voltage Rating
|
120/240 V |
|
Brand
|
WAYNE |
|
Manufacturer
|
WAYNE PUMPS |
